This tutorial assumes you are using any Microsoft Windows Operating System with Office 2010 (32 or 64bit) installed
Step 1: Enable the developer tab in Excel

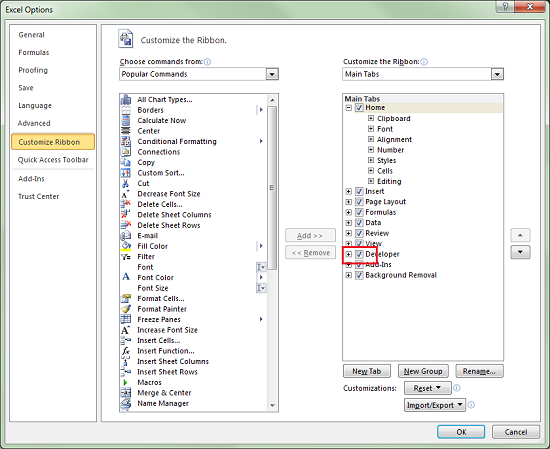

Start Excel, click on File, options and choose "Customize Ribbon". Then check the "Developer" checkbox in the right column.

Step 2: Add a reference to Microsoft Office Soap Type Library 3.0

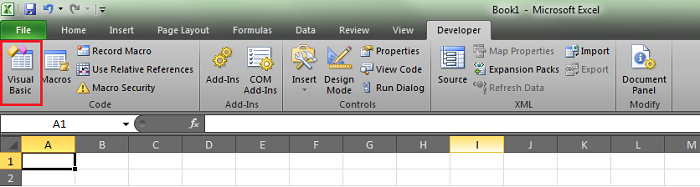

Open Visual Basic by going to the first option on the developer tab on the Ribbon.

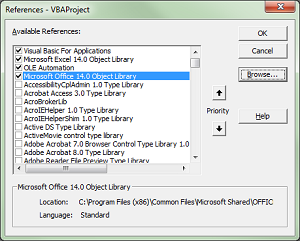

In Visual Basic, go to Tools > References.
Scroll down the list of libraries and pick 'Microsoft Office Soap Type Library 3.0'

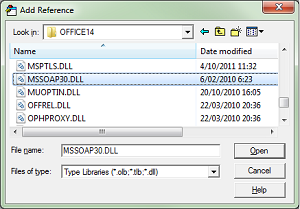

If not found, click 'Browse' and select 'MSSOAP30.DLL' located in 'C:\Program Files (x86)\Common Files\Microsoft Shared\Office 14' (or similar, depending on your installation)

Step 3: Create a Visual Basic module using the Visual basic Editor
Add this piece of code by choosing Insert->Module. Copy this code into your Excel VBA module
Public Sub getGazetteerRecordsByMRGIDs()
'call the webservice
Dim SoapClient As SoapClient30
Set SoapClient = New SoapClient30
Dim WSDLPath As String
WSDLPath = "https://www.marinespecies.org/porifera/distribution.php??p=soap&wsdl=1"
Call SoapClient.MSSoapInit(par_WSDLFile:=WSDLPath)
'get MRGID value from cell
Dim MRGID As Range
Set MRGID = Worksheets("ByMRGID").Range("A5:A155")
' clear values from last request
Worksheets("ByMRGID").Range("B3:O1000").ClearContents
' generate title row
Const length As Integer = 15
Dim Arr(length)
Arr(1) = "MRGID"
Arr(2) = "preferredGazetteerName"
Arr(3) = "preferredGazetteerNameLang"
Arr(4) = "placeType"
Arr(5) = "latitude"
Arr(6) = "longitude"
Arr(7) = "minLatitude"
Arr(8) = "maxLatitude"
Arr(9) = "minLongitude"
Arr(10) = "maxLongitude"
Arr(11) = "precision"
Arr(12) = "gazetteerSource"
Arr(13) = "status"
Arr(14) = "accepted"
Dim Destination As Range
Set Destination = Range("A2")
Set Destination = Destination.Resize(1, UBound(Arr))
Destination.Value = Arr
'start output from row 3
Dim Row As Integer
Row = 3
'get all the MRGID's in the A column
For Each cell In MRGID
'if cell is not empty
If Len(cell.Value) > 0 Then
Dim Item As Variant
Dim i As Integer
i = 0
'loop the fields of the SoapClient
For Each Item In SoapClient.getGazetteerRecordByMRGID(cell.Value)
If i = 0 Then
Else
'check if the field is on the right spot and fill the cell
If Item.BaseName = Cells(2, i + 1) Then
Cells(Row, i + 1) = Item.Text
Else
For f = i + 1 To length
thing = Cells(2, f)
If Item.BaseName = thing Then
Cells(Row, f) = Item.Text
End If
Next f
End If
End If
i = i + 1
Next
Row = Row + 1
Else
Exit For
End If
Next
Set SoapClient = Nothing
End Sub
Then close the VB Editor.
Step 3: Using the function in Excel
You can now link the function getGazetteerRecordsByMRGIDs to a button located in the "developer" tab, selecting "Insert" and button under "form controls".
You can then right click the button and click "assign a macro..."
Select the macro getGazetteerRecordsByMRGIDs and click ok.

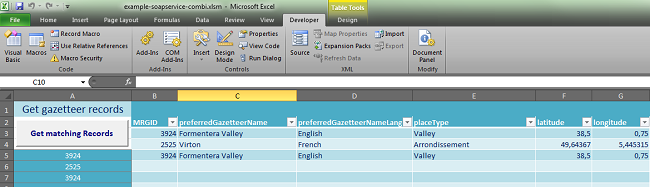

The result should be something like this:

Download this example.
[
